3.8m Large Format Tile Cutter for Porcelain & Sintered Stone | Professional Rail System

Why Choose Our Rail Cutting Machine?

When working with expensive, large-format porcelain slabs or sintered stone, even the slightest deviation can result in costly material wastage. Our 3.8-meter professional-grade rail cutting machine—featuring a precision guidance system and a heavy-duty breaking mechanism—comprehensively resolves the critical issues associated with cutting large slabs, such as chipping and drifting cuts.

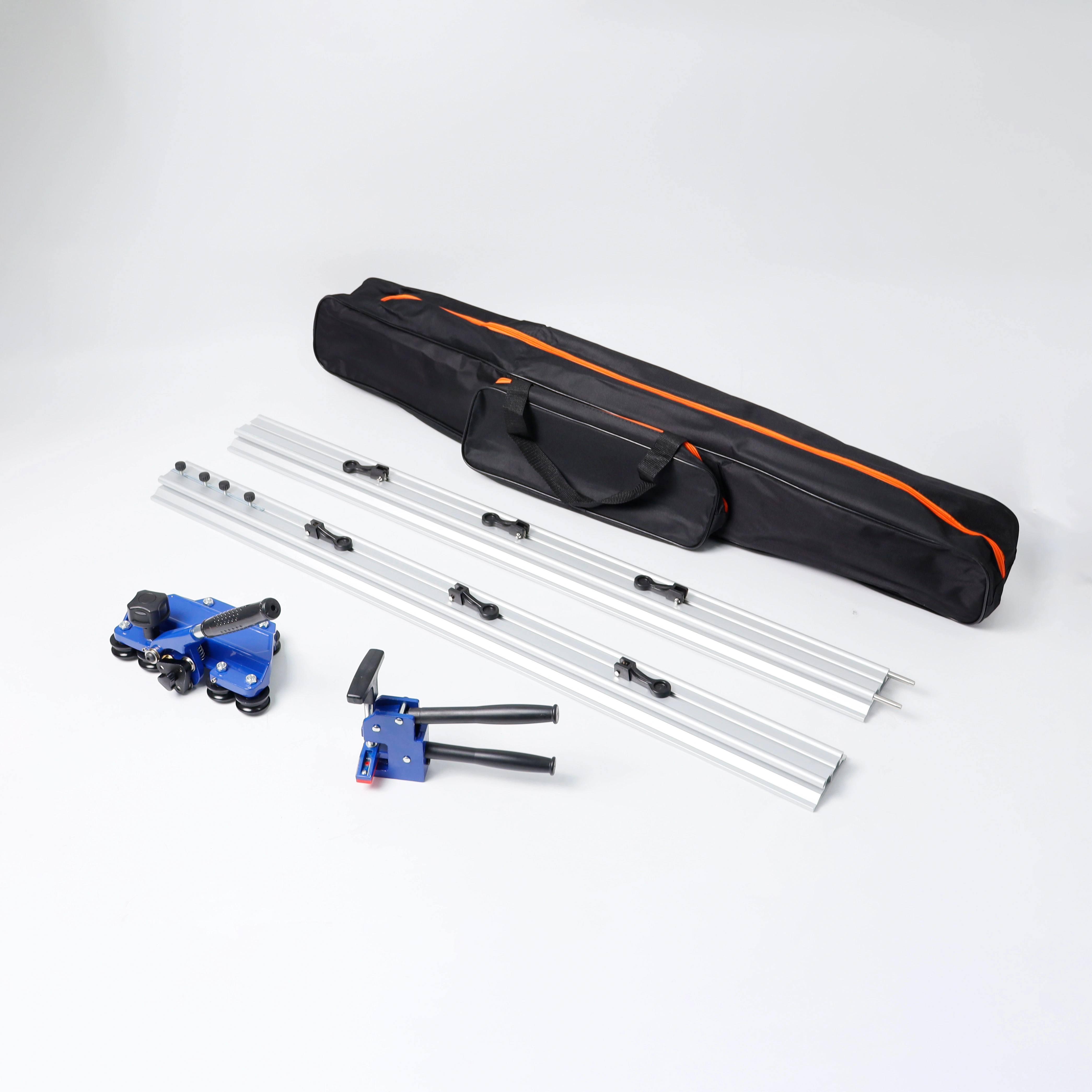

3.8-Meter Ultra-Long Precision Guide Rail (Featuring 6 Built-in Powerful Suction Cups)

Cutting precision is born from stability. Our guide rail system spans an impressive 3.8 meters in length—more than sufficient to handle the vast majority of oversized slabs currently available on the market.

Vacuum Adhesion: The guide rail features six embedded industrial-grade vacuum suction cups that firmly lock onto smooth tile surfaces, ensuring the rail remains absolutely stationary—even when operating at vertical or inclined angles.

Smooth Cutting Performance: A 7-Roller System Paired with 3 Carbide Cutting Wheels

Effortless Operation: The cutting head is equipped with seven high-precision bearing rollers. This multi-point support structure effectively balances the distribution of force, ensuring a completely fluid and resistance-free gliding motion as you push the cutter along the rail.

Ample Spares: The standard kit includes three high-hardness cutting wheels, specifically engineered for cutting through tough sintered stone slabs. These wheels produce a cut edge as smooth as a mirror, significantly reducing the amount of post-cutting polishing required.

Heavy-Duty Slab Breaker

For thicker slabs, standard tile-breaking pliers often prove inadequate. We therefore include a dedicated, heavy-duty pressure breaker with every unit; by utilizing the principle of leverage to apply uniform pressure, this tool ensures that the material splits perfectly and cleanly along the precise cutting line.

Rail Length: 4m

Rust-proof Treatment: Yes

Tile Cutting Size: < 3800mm

Max. Cutting Width: < 900mm

Guide Rail: Aluminum Alloy

Sliding System: 7-Wheel

Cutting Wheel System: Rotating 3-Wheel
