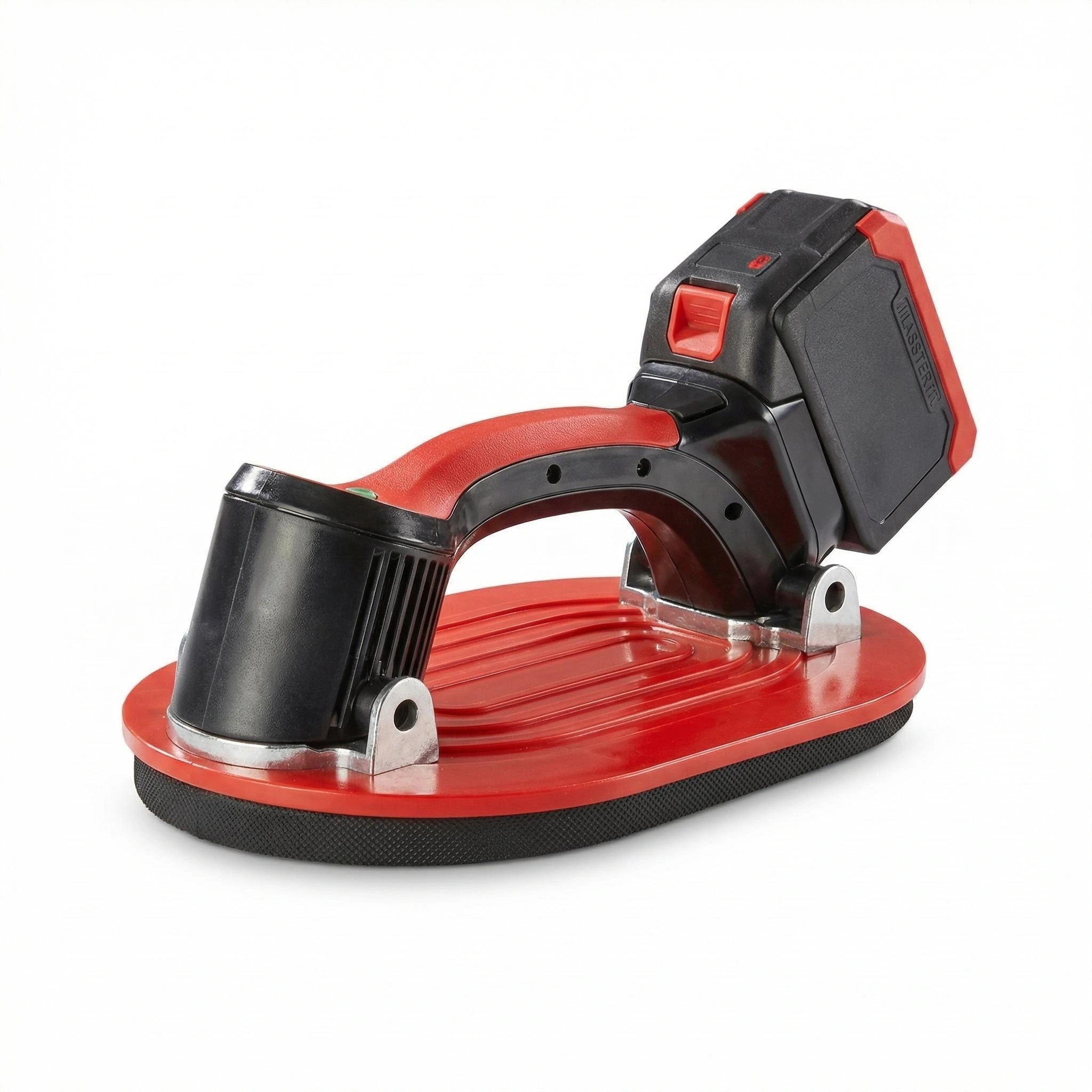

External Lithium Battery High-Flow Vacuum Suction Cup - Heavy Duty Power Lifter for Irregular Surfaces | High-Suction Industrial Vacuum Gripper with Portable Battery Design

1. Equipped with a 7500mAh high-capacity battery (standby time exceeding 90 days), supporting fast and powerful charging; can be charged to 80% in just 3 hours.

2. Newly designed brushless high-power (250W) high-flow motor, with a gas flow rate of up to 16L/s (actual lifespan/start frequency exceeding 100,000 cycles).

3. New control chip – super computing power: intelligent integrated control motherboard, optimized battery management system, improving product standby range.

4. Precision intelligent electronic medical-grade pressure sensor, accuracy ±0.5Kpa (adsorption pressure is clearly visible, automatically adjusting internal pressure values, real-time monitoring of safe air pressure, ensuring construction safety).

5. Digital intelligent visual LED screen, visually displaying pressure, power, and weight.

6. High-strength plastic (corrosion-resistant, high-temperature resistant) hardened treatment.

7. Ergonomic one-piece die-cast environmentally friendly aluminum alloy chassis (hardware), high-strength engineering plastic.

8. The polymer material boasts exceptional wear resistance, and the high-resilience sponge (operating temperature -60℃ to 120℃) offers strong adsorption without leaving any residue.

9. Simple operation: one-button adsorption and one-button pressure release.

10. Lightweight and portable, weighing less than 1.5kg.

11. Equipped with 4 hooks, suitable for various work accessories.

12. Suitable for a variety of breathable materials: breathable, irregularly shaped tiles, gypsum board, mixed mud bricks, stones, cardboard boxes, rice packaged in plastic bags, breathable perforated materials with a surface area less than 5mm², color steel plates, solar photovoltaic panels, LCD screens, etc.

13. Extended switch function: A dedicated extended switch allows for remote control of adsorption and pressure release operations, ensuring the safety of construction personnel.

14. Adaptive and adjustable pressure: The pressure can be adjusted according to the leakage level of the adsorbed object; the working pressure is -20KPa.

15. Daily dust and moisture protection: Once water or other liquids come into contact with the adsorbed object, they will be quickly discharged through the motor's flow rate.

Maximum cutting length: 1600mm

Maximum cutting thickness: 3-15mm

Base material: Extra-wide channel steel base plate, 100mm wide

Rail material: Square steel

Cut wheel

Equipped with 32 bearings, 20x45 coarse guide rails, and an angle guide, facilitating cutting at any angle. Extra-wide channel steel base plate, 100mm wide.
